| 3000-5700K | ||
| 目錄號 | 額定功率 (W) | 整燈光通量 (Im) |
| LEDMZ7LD30W001 | 30 5% | 4050 |
| LEDMZ7LD40W001 | 40 5% | 5400 |
| LEDMZ7LD50W001 | 50 5% | 6750 |
| LEDMZ7LD60W001 | 60 5% | 8100 |
| LEDMZ7LD90W001 | 90 5% | 13050 |
| LEDMZ7LD120W001 | 120 5% | 17400 |
| LEDMZ7LD150W001 | 150 5% | 22500 |
| LEDMZ7LD180W001 | 180 5% | 27000 |
| LEDMZ7LD200W001 | 200 5% | 30000 |
| LEDMZ7LD220W001 | 220 5% | 32560 |
| LEDMZ7LD250W001 | 250 5% | 37500 |
| LEDMZ7LD300W001 | 300 5% | 45000 |
| I 物品描述 | LEDMZ7LD30W001 | LEDMZ7LD40W001 | DMZ7LD50W001 | LEDMZ7LD60W001 | LEDMZ7LD80W001 | LEDMZ7IT90W001 | LEDMZ7IT100W001 | LEDMZ7LD120W001 | LEDMZ7LD150W001 | LEDMZ7LD180W001 | LEDMZ7LD200W001 | LEDMZ7LD220W001 | LEDMZ7IT250W001 | LEDMZ7LD300W001 I |
| 輸入電壓/頻率|VAC][HZ] | 100-277VAC 50/60Hz | 100-277VAC 50/60Hz/347-480VAC | 120-277V | |||||||||||
| 輸入電流 [A] | 0.1-0.33 | 0.13-0.44 | 0.2-0.67 | 0.2-0.67 | 0.29-0.88 | 0.3-1 | 0.36-1.1 | 0.4-1.33 | 0.5-1.67 | 0.6-2 | 0.67-2.22 | 0.73-2.44 | 2.1-0.9 | 2.5-1.1 |
| 輸入功率 [W] | 30±5% | 40±5% | 50±5% | 60±5% | 80±5% | 90±5% | 100±5% | 120±5% | 150±5% | 180±5% | 200±5% | 220±5% | 250±5% | 300±5% |
| 功率因數 | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V |
| 電壓 [V] | 36 | 36 | 36 | 36 | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 30 | 72 |
| 電流（參考） [A] | 0.75 | 1.0 | 1.25 | 1.5 | 2.5 | 2.76 | 3.18 | 3.68 | 4.71 | 5.65 | 6.28 | 6.9 | 7.67 | 8.9 |
| 瓦數(參考) [M] | 27±5% | 36±5% | 45±5% | 54±5% | 72±5% | 82±5% | 92±5% | 107±5% | 137±5% | 164±5% | 182±5% | 200±5% | 230±5% | 276±5% |
| 光通量@5000K [M] | 4050 | 5400 | 6750 | 8100 | 11600 | 13050 | 14500 | 17400 | 22500 | 27000 | 30000 | 32560 | 37500 | 45000 |
| 色溫 [K] | 3000-6500 | |||||||||||||
| 顯色指數 [Ra] | 70 | |||||||||||||

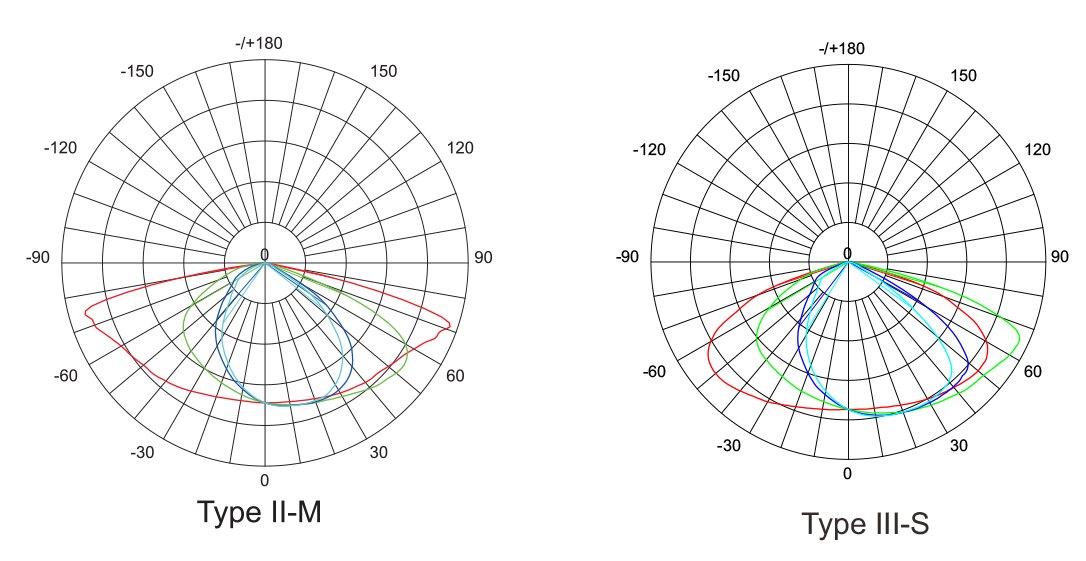

| 光束角 [H,V] | TYPED-M, TYPEIII-S | |||||||||||||
| 平均壽命 [H] | 50000 | 50000 | 50000 | |||||||||||
| 環境溫度 | -25℃-40℃ | |||||||||||||

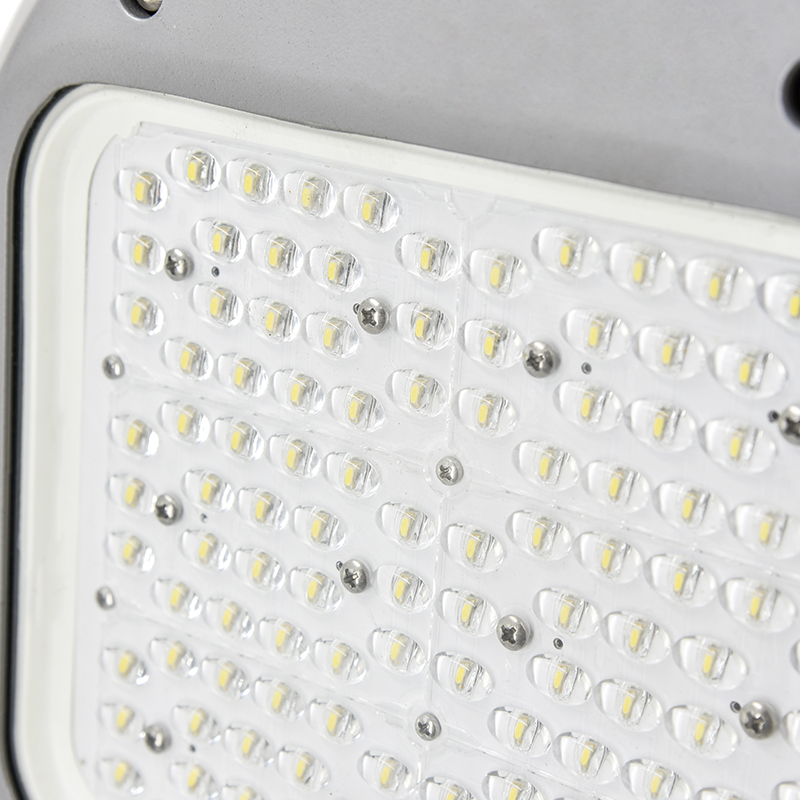

| 芯片 | 三星 351B | |||||||||||||
| 材料 | ADC12 | |||||||||||||
| 存儲環境 | -40°C-85°C RH10%-95% | |||||||||||||
| 凈重 | 4.0Kg | 7KG | 9.4KG | 11.4KG | ||||||||||
| 總重量 | 4.8Kg | 8.1KG | 10.7KG | 12.9KG | ||||||||||
| 包裝尺寸 | 66.5*28*16.5 厘米 | 76*36.5*17 厘米 | 87*41.5*19 厘米 | 99*43.5*20cm | ||||||||||
| 商品描述 | LEDMZ7LD30W002 | LEDMZ7LD40W002 | LEDMZ7LD60W002 | LEDMZ7LD90W002 | LEDMZ7LD120W002 | LEDMZ7LD150W002 | LEDMZ7LD180W002 | LEDMZ7LD200W002 | LEDMZ7LD220W002 | LEDMZ7LD250W002 | LEDMZ7LD300W002 |
| 輸入電壓/頻率 [VAC][HZ] | 100-277VAC 50/60Hz | 120-277V | |||||||||
| 輸入電流 [A] | 0.12-0.4 | 0.13-0.44 | 0.2-0.67 | 0.3-1 | 0.4-1.33 | 0.5-1.67 | 0.6-2 | 0.67-2.22 | 0.73-2.44 | 2.1-0.9 | 2.5-1.1 |
| 輸入功率 [W] | 30±5% | 40±5% | 60±5% | 90±5% | 120±5% | 150±5% | 180±5% | 200 ±5% | 220±5% | 250±5% | 300±5% |
| 功率因數 | >0.92@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V | >0.95@220V |
| 電壓 [V] | 34.5 | 34.5 | 34.5 | 35.5 | 36 | 36 | 36 | 36 | 36 | 30 | 72 |
| 電流（參考） [A] | 0.78 | 1.02 | 1.53 | 2.26 | 2.97 | 3.83 | 4.6 | 5.11 | 5.62 | 7.67 | 8.9 |
| 瓦數(參考) [M] | 27±5% | 35±5% | 53±5% | 80±5% | 107±5% | 138±5% | 166±5% | 184±5% | 202±5% | 230±5% | 276±5% |
| 燈具光通量[LM] | 3900 | 5200 | 800 | 11700 | 15600 | 19500 | 23400 | 26000 | 28600 | 33750 | 40500 |
| 色溫 [K] | 2700-5700 | ||||||||||
| 顯色指數 [Ra] | 70 | ||||||||||
| 光束角 [H, V] | II-M型、III-S型 | ||||||||||
| 平均壽命|h] | 50000 | ||||||||||
| 環境溫度 | -25℃-40℃ | ||||||||||
| 芯片 | 3030 | ||||||||||
| 材料 | ADC12 | ||||||||||
| 存儲環境 | -40℃-85℃ NRH10%-95% | ||||||||||
| 凈重 | 4.0Kg | 7KG | 9.4KG | 11.4KG | |||||||
| 總重量 | 4.8Kg | 8.1KG | 10.7KG | 12.9KG | |||||||
| 包裝尺寸 | 66.5*28*16.5 厘米 | 76*36.5*17 厘米 | 87*41.5*19 厘米 | 99*43.5*20cm | |||||||
